Product Overview

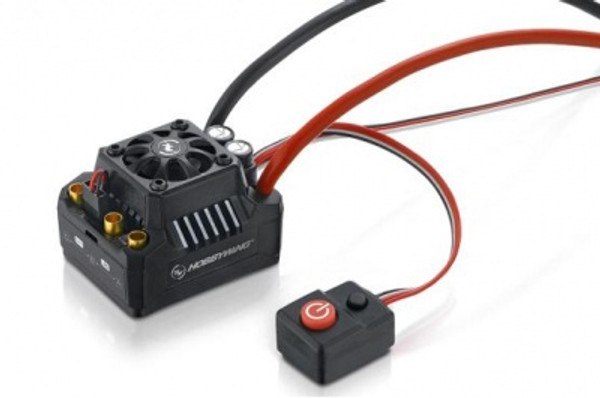

Hobbywing Ezrun MAX10 SCT 120amp 2-4s Sensorless Brushless ESC
The MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc. Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian. The user will have the choice of adusting the ESC parameters as per his perference and ability.
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.
EzRun MAX10 SCT Features:
High Reliability & Durability
Great Flexibility & Versatility
Advanced and Secure Electronic Switch
Applicable to All Weather Conditions
Innovative Filter Capacitor Thermal Protection
Regular Firmware Updates Free of Charge
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Yes
Cont./Peak Current: 120A/760A
Input: 2-4S LiPo/6-12 Cells NiMH
BEC Output: Switch Mode:6V/7.4V,3A
Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
Output Wires: Black-12AWG-200mm*3
Input Connectors: No
Output Connecotors: 4.0 Bullet Connectors (Female)
Fan Size: 25.0x25.0x10.0mm
Fan Voltage Range: 5-7.4V
WiFi Module: Supported
Program Port: FAN/Program Port
Size: 49.0x39.5x34.7mm
Weight: 105g
