Product Overview

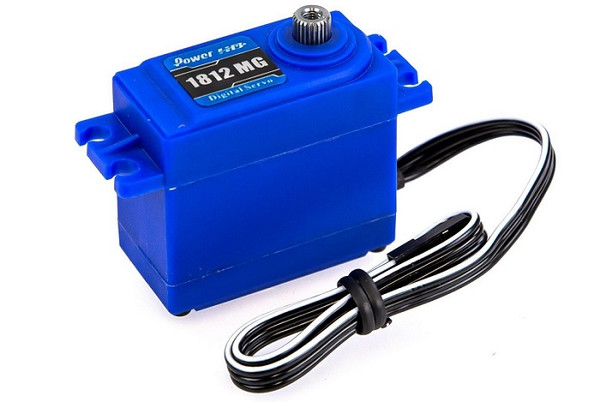

Power HD Standard 1812MG 18kg Metal Geared Waterproof Servo (Digital)
Specifications:
Torque (4.8V): 16.0kg-cm
Torque (6.0V): 18.0kg-cm
Speed: 0.14 sec (4.8V); 0.12 sec (6.0V)
Operating Voltage: 4.8 ~ 6.0 DC Volts
Weight: 56g
Bearing Type: Ball Bearing x 2
Motor Type: DC Motor
Gear Type: Copper and Aluminium
Operating Temperature: -20oC ~ 60oC
Control System: Pulse Width Modification
Working Frequence: 1520µs/333hz
Total Height = 43.5mm
Body Width = 40.6mm
Below Mount = 26.5mm
Above Mount = 17mm
Total Length = 54.3mm
Total Width = 20mm
