Product Overview

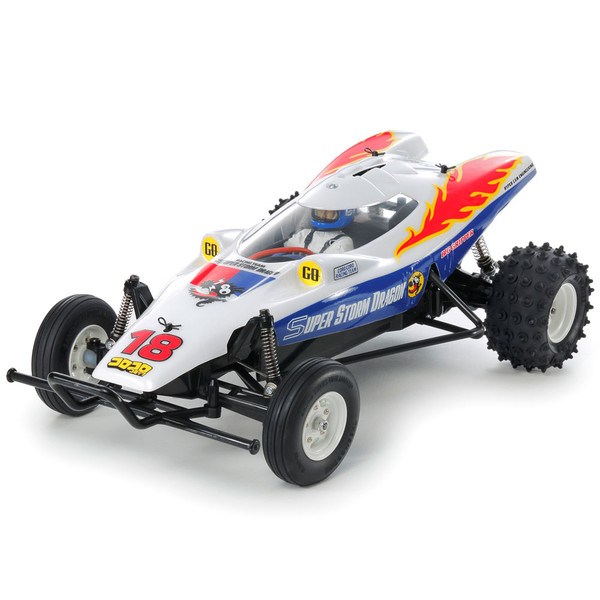

Tamiya Super Storm Dragon Kit
This R/C model assembly kit creates a buggy inspired by the star vehicle of a 1980s Japanese R/C comic. The body was sold in 1989 as a spare body parts set, but this is the first time it has been made available in a kit with a chassis. It is based upon the proven rear-wheel drive chassis employed by the legendary Hornet. Pre-cut and pre-painted in white, all that is required to finish the body is the application of stickers. The driver figure can be painted in whatever style you wish.
Tough and Fun Chassis
The model’s lightweight and durable chassis is based around a bathtub-type frame. It features front swing-axle suspension with friction dampers, while the rear is cushioned by a rolling rigid axle setup and oil dampers for excellent shock absorption. The differential is enclosed in a sealed gearbox to ensure that dust and dirt stay outside, allowing it to continue providing smooth cornering. Three-piece wheels give the car authentic buggy looks, with grooved front tyres and rear spike tyres guaranteeing superb performance on- and off-road.
Length: 410mm, Width: 130mm, Height: 230mm
Wheelbase: 251mm
Ground Clearance: 16mm
Tread: 172mm (Front), 185mm (Rear)
Tire Width/Diameter: 21/73mm (Front), 49/86mm (Rear)
Rear-Wheel Drive
3-Bevel Differential
2-Piece Steering Tie-Rod
Suspension: Front swing axle & Rear rolling rigid
Gear Ratio = 8.2:1
Type 540 Motor
Electronic Speed Controller (ESC) is sold separately.
Separately Required Items
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack and charger
