Product Overview

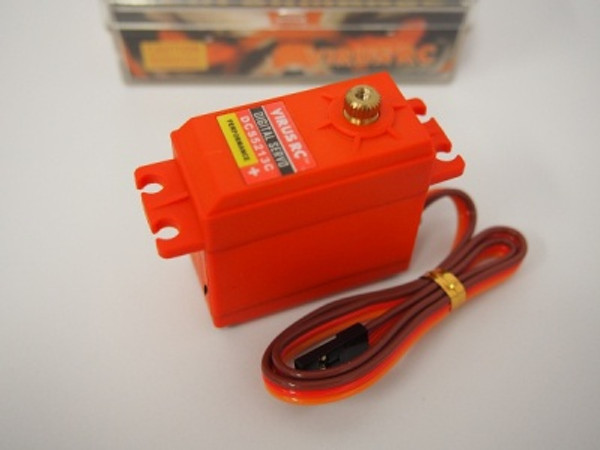

Virus Rc DCS5213C High Precision 13kg Digit Servo
High performance Digital Standard Servo
High precision metal gears
High quality brushed motor
Dual ball bearing
Waterproof
Specifications:
Dead band: 3us
Working frequency: 1520us / 330Hz
Operating Voltage: DC4.8~6.0V
Opertaing Speed (4.8V): 0.16sec/60 degrees at no load
Operating Speed (6.0V): 0.14sec/60 degrees at no load
Stall Torque (4.8V): 12.5kg (173.63oz/in)
Stall Torque (6.0V): 13.5kg (187.52oz/in)
Dimensions: 40x20x38.3mm / 1.57x0.79x1.51inch
Weight: 52g (1.83oz)
Connector Wire Length: JR 300mm (11.81inch)
