Product Overview

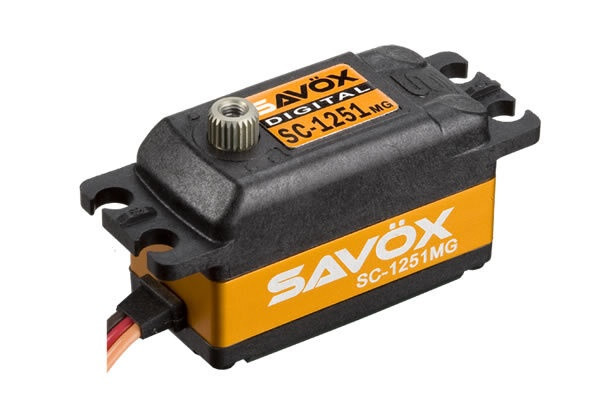

Savox Low Profile High Speed Metal Gear Digital
Savox SC1251MG Features
Super high 4096 resolution and metal gears
Super light-weight
Coreless Motor provides high speed, incredible efficiency, and low power consumption than comparable servos
The aluminum case design not only looks good but also helps operation to remain cool and smooth
Ideal as a steering servo for 1/10 surface applications and in gliders and airplanes that have thin wing profiles
Spec Check:
Dimensions(mm): 40.8X20.2X25.4
Weight(g): 44.5
Speed(@4.8V sec/60): .10
Torque(@4.8V oz-in): 97.2
Speed(@6.0V sec/60): .09
Torque(@6.0V oz-in): 125.0
Gear: Metal
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
