HS-65HB Mighty Micro Feather Light Servo HRC33065S

(No reviews yet) Write a Review
$41.95

Product Overview

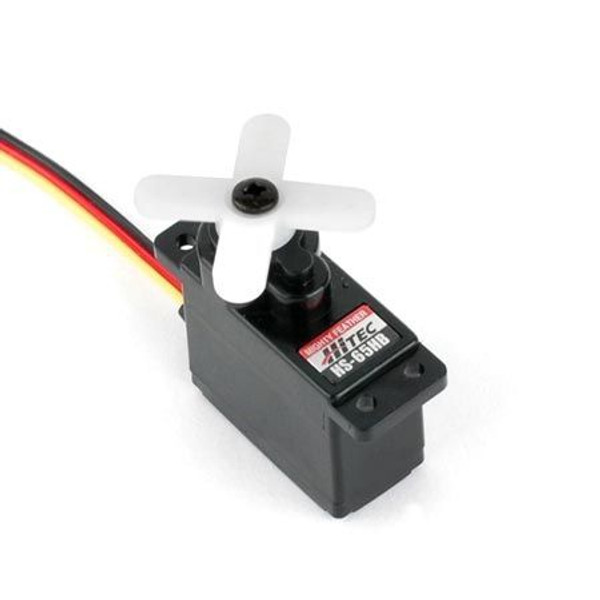

Hitec HS-65HB Mighty Micro Feather Light Servo

Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal (HRC32065S) or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 oz-in of torque at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features:
Powerful but small
Perfect for many electric applications
Long-lasting Karbonite gears

Specifications:
Size Category: Minis and Micros
Type: Analog
Application: Park flyers, small aircraft, 1/18 scale cars
Torque: 25.0 oz-in (1.8kg-cm) @ 4.8V; 30.6 oz-in (2.2kg-cm) @ 6V
Speed: 0.14 sec/60 deg @ 4.8V; 0.11 sec/60 deg @ 6V, at no load
Length: 0.93 in (23.6mm)
Width: 0.46 in (11.6mm)
Height: 0.94 in (24.0mm)
Weight: 0.39 oz (11.2g)
Bushing Or Bearing: Bearing
Bearing: Single
Motor Type: 3 Pole
Connector Type: Universal
Gear Material: Karbonite
Current Draw Idle: 7.4mA
Current Draw Stall: 950mA @ 4.8V; 1200mA @ 6.0V
Voltage" 4.8V to 6.0V
Deadband: 5µs
